Veratron Debuts NMEA 2000 Intelligent Battery Monitor
Batteries are essential for engine starting and operating onboard utilities. With Veratron’s new Intelligent Battery Sensor (IBS), it’s simple to monitor their status and health in real-time. The system works with any OceanLink, AcquaLink or NMEA 2000-networked display, and is compatible with the latest glass cockpit systems.
The system includes a Veratron LinkUp Gateway Module that enables the Intelligent Battery Sensor to be connected to and compatible with the NMEA 2000 network. Its internal galvanic isolation decouples the backbone power from the LinkUp power supply, per NMEA requirement.
Veratron’s Intelligent Battery Sensor (IBS) measures vital battery parameters: voltage, current and temperature, as well as state of charge, health and function. This provides the essential information needed to plan energy usage aboard and be aware of potential problems.
The IBS system monitors a single battery or full bank. Multiple LinkUp IBS B00042501 kits can be used to provide data specific to house, starter and system-specific supplies. It works with 12V starter, gel or AGM battery types, and, coming in Fall 2020, 24V.

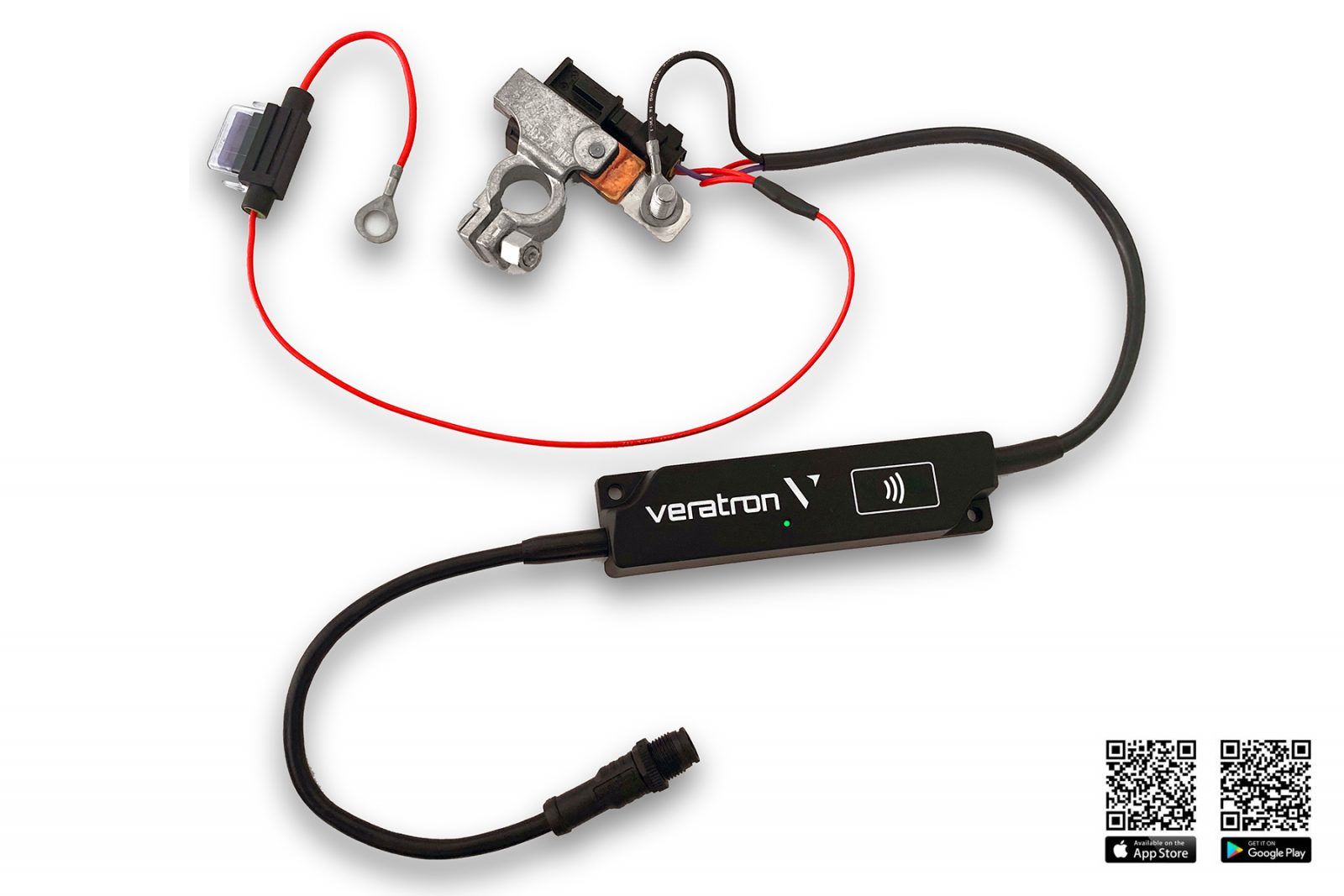

The IBS simply clamps onto the negative pole terminal. Completely sealed, it has a watertight 3A inline fuse within the housing. This connects to the NMEA 2000 backbone through the innovative LinkUp Gateway Module and enables Veratron’s numerous sensors to communicate with the network.
Configuring a LinkUp gateway is simple using a mobile device and the companion Veratron app available from the App Store and Google Play. Each module has a built-in passive wireless antenna. The parameters of the sensor are configured to type, instance and warning threshold on the mobile device and then tapped against the LinkUp device for instant data download.
Alternatively, LinkUp devices can be configured via NMEA 2000 with the PC Configuration Tool. This method additionally allows for real-time reading of the analog signal. An LED on the device will illuminate, notifying the user that the LinkUp is being configured.
Veratron’s LinkUp IBS Kit B00042501 includes a Gateway Module and harness. It costs $199.99 and comes with a two-year warranty.
Contact Veratron US, Inc., 131 N. 86th St., Wauwatosa, WI 53226. www.veratron.com.
Related Posts:
Panbo publishes select press releases as a service to readers and the marine electronics industry. The release contents do not reflect the opinion of the editors and are not fact checked by the editors
A simple NMEA 2000 battery monitor has been hard to find so I’m pretty intrigued by this one. At $199 the price is pretty attractive too. I’m hoping to get my hands on one to try it out and see how it does. I’ll report back as soon as I do.
-Ben S.
Please let us know Ben! I haven’t figured out where to buy one yet. Maybe I’ll just drive over to ‘Tosa and camp out in their parking lot. ð
I agree that it is very interesting with a price point between$150-200. Please test and review! Love to buy one if it deliveres.
Do you know how many Amps it can handle?
From what I understand the battery monitor can handle 150 amps of continuous load and surge loads of 1500 amps for up to 500 milliseconds.
-Ben S.
