Joe’s 1969 Allied 42 yawl, fully problem solved & awaiting owner #3

Allied_42_Furly_B_cPanbo.jpgFull disclosure: a major motivation for this entry is to help sell my old friend Joe McCarty’s boat by describing how well he rebuilt it, particularly in terms of reliable systems. The Furly B is being brokered by Robinhood Marine, where Joe was general manager for 20 years, and I had a good look at her just before the Maine Boats, Homes & Harbors Show opened last Friday. The visit confirmed what I pretty much already knew; Joe bought an excellent old boat and he made her better than new. Actually, the background story for a new owner is far better than that…

Allied_XL-2_yawl_brochure_cover_aPanbo.jpgFurly B was not the first Allied 42 that Joe owned, and he was not my only sailing buddy who thought of the 60’s as a golden age of racer/cruisers. Boats built to the CCA rule tended to have long ends, moderate drafts and easily manageable rigs; they also tend to look good and sail well, even out in blue water. And since the hulls were typically overbuilt of solid fiberglass, many still survive and are often good rebuild candidates. The result can be a classic beauty that’s not at all fussy to use or take care of, like Furly B.

The Allied 42 XL-2 has a particularly sterling pedigree, as you can read in this 2009 Rob Jordan review, where you can also download the must-read original brochure seen above. (Take care, though; seeing how much new sailboat $68,800 could get you even in 1975 may make you weep.) Sparkman & Stephens still proudly profiles the 42 design and it’s characterized on the Allied Owners Group site as “disputably the best interior and exterior finish and the best sailing ability of any Allied model” (which included much loved models like the Luders 33 and Seawind 35). I borrowed Joe’s first Allied 42, Rhapsody, for a few days back in the mid 90’s and can attest to his excellent taste.

Allied_42_Furly_B_at_MBHH_Show_2015_cPanbo.jpgWhat Joe hoped for the second time around was a 42 yawl that had never been rebuilt so that he could do it all his own way. And he lucked out in 2005 when just such an Allied was sold by the estate of the original 1969 owner. Perhaps not coincidentally, that’s also when Joe retired from boatyard management responsibilities and went back to hands-on rigging, mechanical, and electrical work during Robinhood’s busy spring and fall seasons. Thus began a nearly five year semi-retirement project that included the restoration or replacement of all hardware, engine, sails, systems, etc. — as suggested in the inset above — and it’s hard to imagine a better man for the job.

In fact, I know exactly how Joe began his career as an all-around boat guy with a special facility for systems. It was June 1971 when he and I went directly from college graduation to Camden, Maine, as the new owners of the good sloop Alice. The 40-foot boat had nearly sunk that winter so before we “sailed off around the world” we had to replace the completely seized Red Wing engine (above) with one that worked, though we had no practical experience whatsoever and were living aboard at a mooring with our three partners plus a cat and a dog!

It was primarily Joe who figured out how to install the Mercedes OM 636 diesel that would help Alice make three round trips to the Caribbean during our seven years as boat partners and that was still running fine when the next owner finally sold her in about 2001. So the August ’71 Joe seen in the other photo above deserved to feel great pride during one of our first trips out of the harbor. And incidentally, sharing the helm is the original Furly Brown, the first of many memorable Springer spaniels whom Joe trained and doted upon.

Allied_42_Furly_B_manual_excerpts_cPanbo.jpgYou’ve probably already gathered that Joe McCarty is no longer alive. While I’m grateful for the terrific Gizmo passage we had last fall — Joe’s electronics skepticism made Panbo — and two visits to his Florida home as the damn cancer took him down, I will grieve this man for a very long time. But visiting the Furly B was not maudlin, and a new owner needn’t worry about ghosts. For Joe, rebuilding the Allied 42 was an intellectual and physical project with the end result being a low-hassle bareboat charter business that he could operate during his summer months in Maine. He did enjoy an occasional sail around Robinhood’s tricky waters, but I understand that he only spent one night aboard and that was charter business.

So the most personal thing about the Furly B is the easily changed name and maybe some of the notes Joe kept about recent maintenance projects. He’d also written a detailed manual that will be a big help to anyone taking charge of the boat, and I’m pretty sure that “Thanks, Joe!” will be uttered many times as system niceties are discovered.

Allied_42_Furly_B_main_DC_panel_cPanbo.jpgFor instance, I learned that the 42’s entirely new electrical system is neatly organized into several function group breaker panels. This quality Blue Seas model might be called the main panel and includes a built-in multimeter that can display voltage or current draw for each of the two house batteries and the engine start battery. The major household functions and all lighting circuits are controlled here. Note how the yawl has both standard and offshore masthead running lights and is set up right so that you can only turn on one or the other.

Allied_42_Furly_B_behind_main_DC_panel_cPanbo.jpgAll the wiring I saw seemed correctly sized, color coded, and secured. This “main” panel is particularly accessible, but I wasn’t surprised to find reasonable access to every system I checked out. That’s what you get when the renovation designer and future maintenance guy already spent most of his working life fixing boat systems or supervising others in the same pursuit.

Allied_42_Furly_B_chart_table_detail_cPanbo.jpgHere’s a view looking forward over the nav table with its nav specific breaker panel and a crib sheet showing vessel dimensions and the color coding on the centerboard control line. (The manual has suggestions about where to set the board for different points of sail and sail configurations.) Note the Lewmar Roller Shade/Screen added under the hatch at the top of the photo, and the forward hatch has one too. I adore the same super convenient shade/screen system that came with Gizmo, but wish the installer hadn’t used loose felt weather stripping to fill the gap between the flat frame and curved cabin top. So I noticed that Joe carefully cut teak fillers.

Allied_42_Furly_B_galley_detail_cPanbo.jpgThe aft end of the galley is a practical location for a few more circuit breakers and monitoring devices, especially given the minimal cable raceways built into a 1969 sailboat. But Allied gets credit for the nifty butcher block counter with built-in trash hatch. I believe that the aluminum door slide hardware seen on the right is also original and speaks to Allied’s practical-but-not-fancy aesthetic. I don’t know what prompted the “Hot Water is very HOT!” signage but I do know that Joe strategized to prevent common bareboat chartering mishaps.

Allied_42_Furly_B_battery_bank_cPanbo.jpgFor instance, the Allied 42 is set up so that it’s nearly impossible to run down the start battery accidentally. And Joe was proud about how well his high amperage alternator, Balmar smart regulator and right-sized AGM house bank system meets the design goal of supporting refrigeration and other cruising loads with only two 45 minute charging sessions per day. Note the “fuel filter chng kit” at the back of the battery locker; there are several other helpful maintenance aids stowed around the boat and apparently a Robinhood locker with original bits and pieces that didn’t make the renovation cut.

Allied_42_Furly_B_macerator_pump_detail_cPanbo.jpgI laughed, though perhaps bitterly, at some wag’s theory about “cruising being the time you spend between fixing pumps” and I’m actually jealous of Furly B’s SeaLand T series waste discharge pump. I’ve painfully fixed Gizmo’s Jabsco macerating pump twice already in five years, and it’s broken again. Joe helped me troubleshoot that system the first time, but in the process let me know that a bellows-type pump like this one is a much better way to go (though in Gizmo’s case it means upsizing a seacock and tank output hose). Note the excellent accessibility, switch and instructions right at the point of action Joe-style, and how he used scrap hose to quiet the pump and possibly prolong its life. Nice!

Allied_42_Furly_B_cockpit_electronics_cPanbo.jpgI sought Joe’s counsel about various problems and projects on every boat I’ve ever owned, so it was nice when he sought mine regarding Furly B’s electronics. He was not a “latest and greatest” type — in fact, he enjoyed teasing people like me by calling smartphones, the Internet and much else “The Google” — but he had come to appreciate the value of plotter and radar right at the helm. So what you see here is a Garmin 4208 — no touchscreen for Joey — and a pair of GMI 10 instrument displays. The Garmin wind and depth sensors are NMEA 2000 and on the same network is a Garmin VHF200 at the nav station with a wired cockpit remote (the current listing is wrong on that, though otherwise thorough). Meanwhile the Raymarine autopilot remains purposely standalone. Everything seems to be working fine, including the waterproof inline Ethernet connector I helped source so that it’s easy to remove the mizzen with the Garmin xHD radome.

So how do you value a boat when a guy like Joe thought through every system and installed it as if he was going to maintain it under charter use for a long time? Someone is going to get a wonderfully reliable boat here, I think. And incidentally, the Robinhood broker they’re going to deal with, Dave Perry, is a totally upstanding pro, which is why I had him represent me when I purchased Gizmo.

Besides for the sales pitch I guess I’ve also memorialized Joe a bit, so I’ll finish with a collage that includes some mutually embarassing images from the 70’s. And for all those help calls (and for the future owners of Furly B) I say “Thanks, Joe!”

Joe McCarty mostly 70s_montage cPanbo.jpg

Ben Ellison

Ben Ellison

Panbo editor, publisher & chief bottlewasher from 4/2005 until 8/2018, and now pleased to have Ben Stein as a very able publisher, webmaster, and editing colleague. Please don't regard him as an "expert"; he's getting quite old and thinks that "fadiddling fumble-putz" is a more accurate description.

11 Responses

  1. Leo Starrenburg says:

    “And since the hulls were typically overbuilt of solid fiberglass, many still survive and are often good rebuild candidates.”
    I agree, went through a major refit of my 1971 ‘Vesta’ after checking out the basic hull condition, solid as a rock even after all those years. Have a look at
    w fr greetings, Leo

  2. Ben Ellison Ben Ellison says:

    A well meaning reader suggests…
    “You may want to remove the battery box photo; too many code violations:
    Use of wingnuts rather than hex nuts/lock washers
    Too many connections on a battery post
    Inadequate battery tie downs”
    …but I think it would be better for all to discuss possible violations instead.
    Replacing wingnuts with hex nuts definitely is a recent ABYC directive, but it would only take a few minutes and dollars in this case. I’m not sure about the hold down requirements, but if you click the battery box photo bigger you’ll see that there appears to be a missing third hold down stud at the right side of house batteries. If that makes the thick plexiglass (or similar) bar sufficient, then again a few minute/dollar fix.
    How many connections to a battery stud are too many? I’d like to know myself. But I do know that Blue Seas has a neat (and inexpensive) new way to distribute up to four smaller gauge feeds from one terminal connection, blade fuses included:
    Ed Sherman has some good dope on proper battery installs:
    I particularly like Ed’s second entry as he emphasizes the reasoning behind the regulations. And I’m pretty sure that Joe accomplished the goal even if there’s a code violation (easily fixed). I really doubt those batteries are going anywhere and you can see for yourself that there is zero corrosion and that all the ring connectors seem to have excellent contact with the terminals.

  3. Leo Starrenburg says:

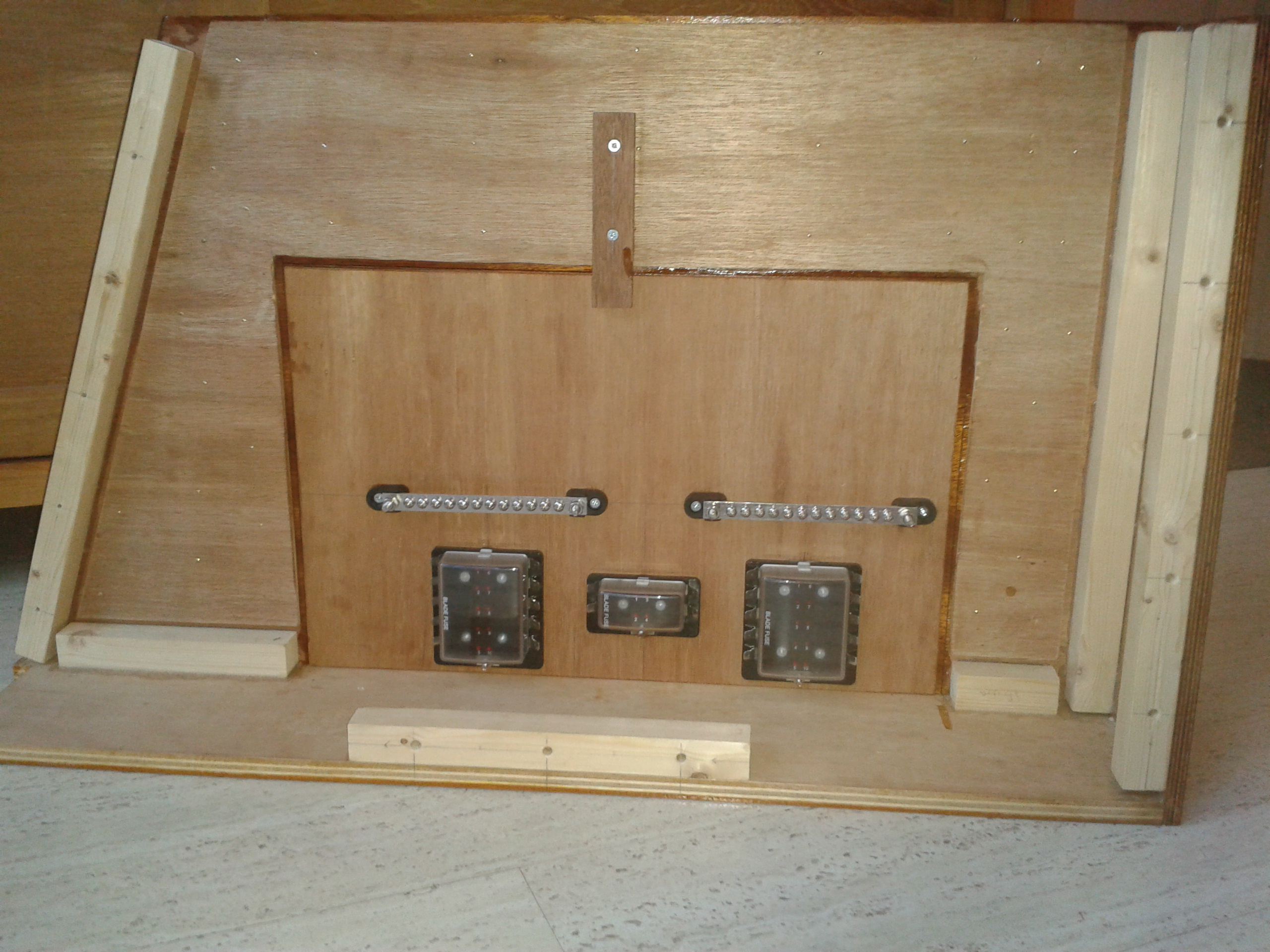

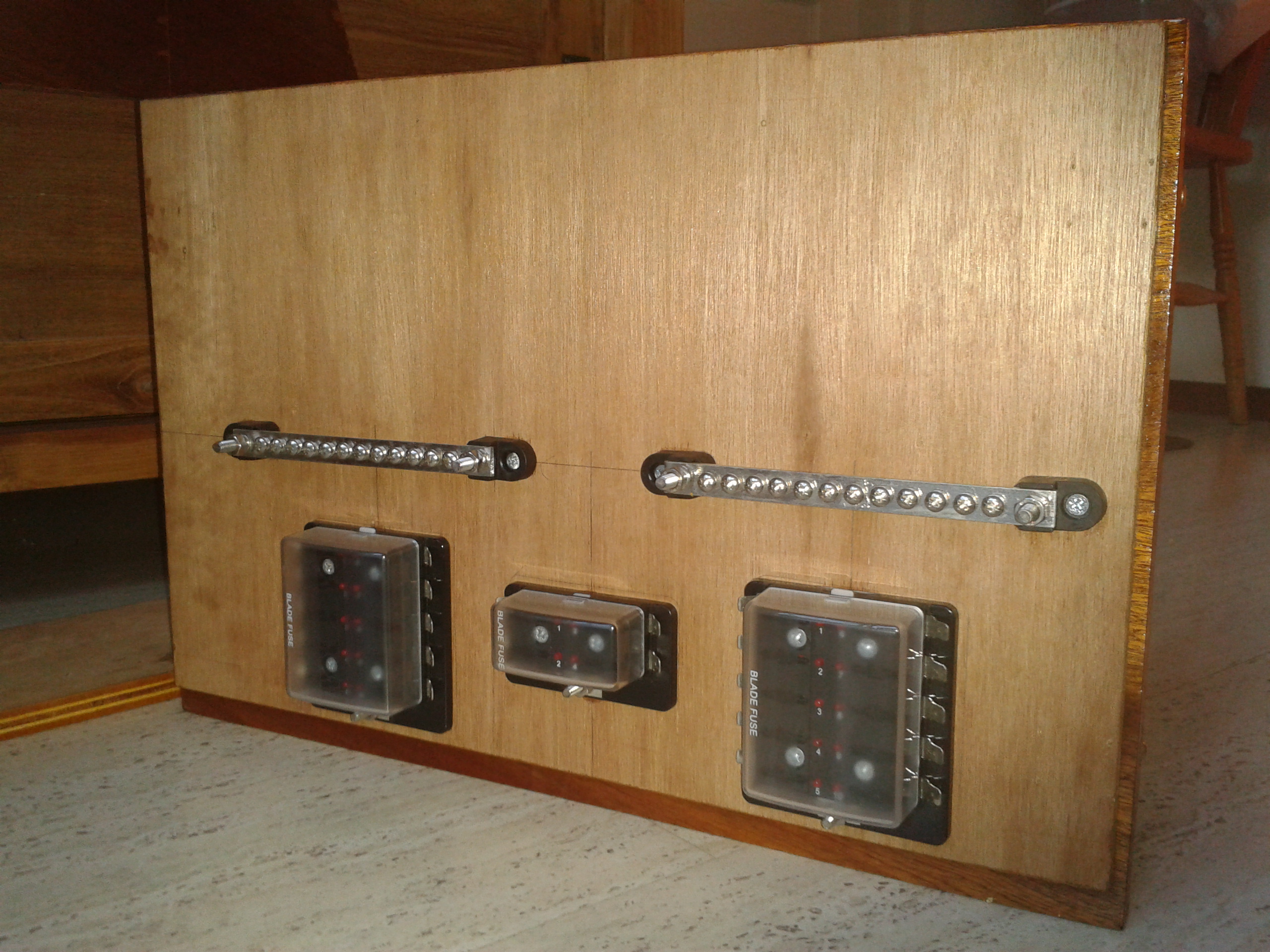

    A setup for part of the distribution system on Vesta.
    The fuse holders accept the standard car blade fuses, they come in 10, 6 and 4 fuse sizes. Negative bus bars above and about half the area of the panel reserved for cable runs, I find they take up quite some space.

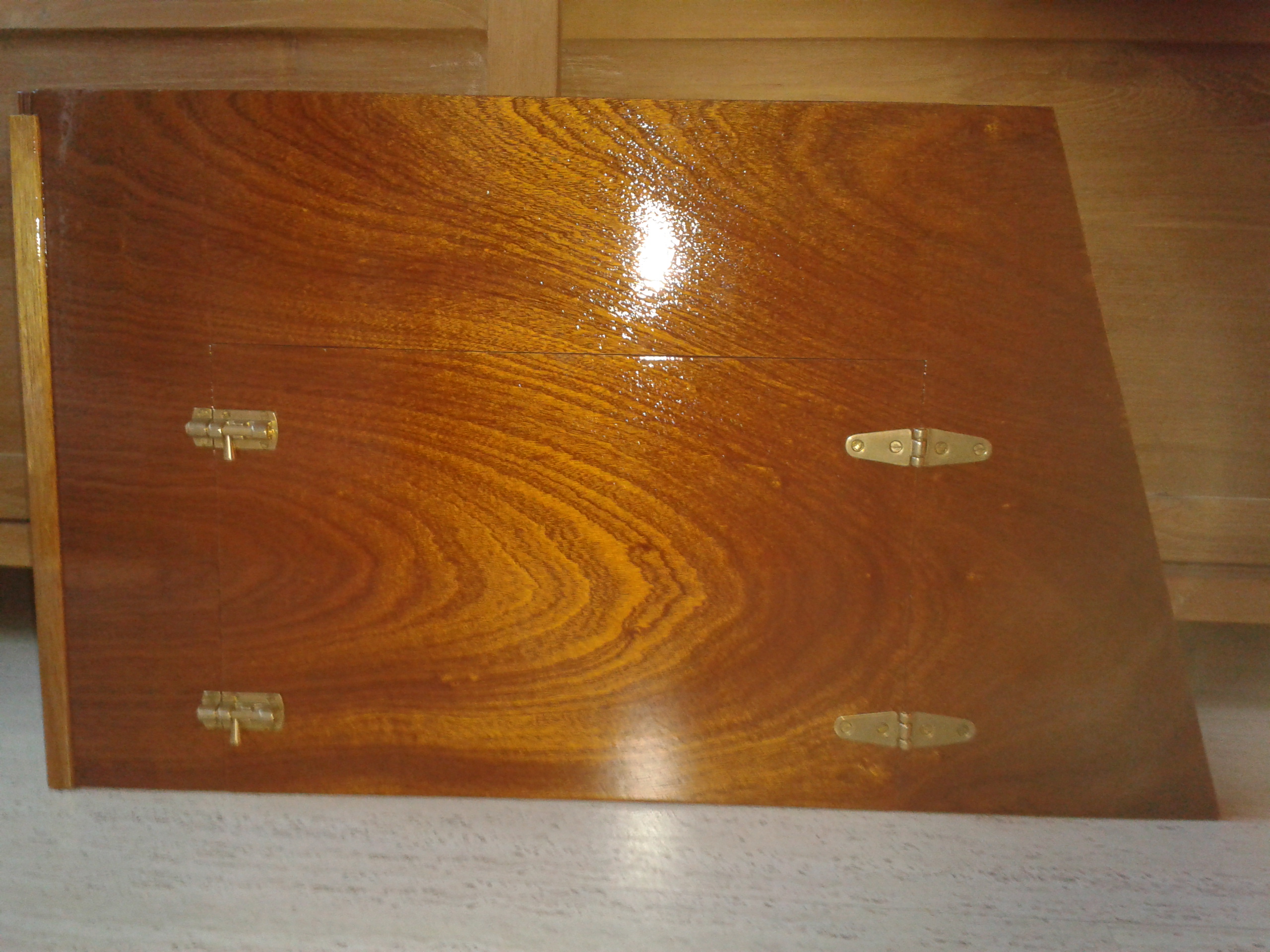

    This bit of amateur woodwork goes to the rear side of the steering pump housing, the fuse panel is hinged for easy access. These fuses protect mostly comms., depth meter, navigation lights and such.
    I have no knowledge of the US standards, but I agree that a hexnut set with a wrench is better than a wingnut fixed by hand. That said, please DO take care while wriggling the wrench near the battery poles (!)
    w fr greetings, Leo

  4. Jason Young says:

    Great post! As much as I love the Marine Electronics industry it is so enriching to hear stories like this. People, people like your friend Joe are what keep the electronics, boats, and the industry going as well as the voyages and dreams. Ben, thank you for sharing!

  5. Ben,
    Not to belabor the point, or to cast aspersions on what is obviously an outstanding vessel and person, but to answer your own question – the number is four:
    ABYC No more than four conductors
    shall be secured to any one terminal stud. If additional
    connections are necessary, two or more terminal studs
    shall be connected together by means of jumpers or copper straps.
    This limit(along with the wingnuts) is pretty well-known, even for non-professionals like me. I know my reaction when I see something as obvious and visible as this, is not “what would it cost to do this right”, but rather “I wonder what other shortcuts were taken that I can’t see?”

  6. A beautiful boat, Ben – your friend was a true craftsman! The difference between a boat (re)built by someone who lives boats and what you see at the boat shows is amazing. The boatshow stuff is really neat looking – but the one built by experience WORKS.
    On the disputed battery box, the one missing item that concerns me is the main battery fuse for each battery – the ABYC wants it within 7″, but they’ll apparently settle for “close”. My experience with large station batteries in comm sites is that this big fuse can be VERY important “disaster insurance” – the proverbial dropped wrench or loose big cable (blinding flash) scenario. I do see a large fuse holder in the other compartment, so it’s possible they are there, but it isn’t clear how. You are right that fixing the wing nuts and battery hold-down should be easy.
    As I’m sure ALL of us can testify, these problems are truly minor compared to what is found every day on boats more than a few years old..:(
    Our first boat (a Gulfstar 50) had a solid hull, and it’s still going strong. I loved the ability to listen to what was going on in the water (porpoises and other creatures!) but the propensity of the hull to work against the furniture in a seaway was dismaying – I remember going up forward after rounding Point Sur to discover a large collection of toothpicks that used to be teak paneling against the hull..:)

  7. Ben Ellison Ben Ellison says:

    Thanks, Jason, much appreciated.
    And thank you for the ABYC reference, Grant (though I will note that you failed to pass your self-proclaimed standard “not…to cast aspersions”).
    Hartley, I think you hit the nail on the head — thanks! — but don’t know about the battery fuse situation. I suspect they are there somewhere and will note that Joe supervised the building of many new Robinhood power and sail yachts as well as the rest of the yard. (Robinhood is owned by the founder of Cape Dory and got some of its tooling when that operation closed down.)
    Somehow this all reminds me of what I’ve learned about surveyors over the years. Many are quite competent and will report on most of the code violations aboard a boat. But the really great ones in my experience will further explain the true severity of the violations and also advise on other issues that might cause problems as well as ones that can be tolerated for a while. I’m pretty sure that Furly B will do fine with either type of surveyor.

  8. Sorry Ben, I thought I covered myself when I stated this was “obviously an outstanding vessel and person”. My apologies.

  9. Ben Ellison Ben Ellison says:

    PS I recall now that Joe took an excellent surveyor — Steve Bunnell — to Virginia to look at this Allied 42 before he purchased it, and I believe that Steve also did subsequent insurance surveys. Like Dave Perry, Steve was part of my A team when I bought Gizmo in 2009:
    Incidentally, it took Steve all of 30 seconds to realize that Gizmo’s hull is balsa cored despite what was written in the buyer’s survey that the prior owner had shared with us. That surveyor had also detected moisture in one section of Gizmo’s “solid fiberglass” transom and had theorized that the hull might be delaminating. So there are also frighteningly incompetent surveyors out there!
    (At Steve’s suggestion, I contacted the company that built Gizmo’s hull and learned that the layup was designed to stay stiff even if the coring failed, and that the outer hull also had a moisture barrier. Moreover the coring is segmented and the yard that finished the boat was super careful about back sealing penetrations. So the moisture remains in one section of the transom and I have no plans to mess with it.)

  10. Ben Ellison Ben Ellison says:

    Thanks, Grant. I may be a dite touchy on this subject 😉
    Incidentally, there’s a nice bio of Joe on Robinhood’s FB page:

  11. Rick says:

    Good Read!!!! I bought Dauphine, the only fixed keel 42xl and I love her. I collect all I can on the 42xl and this article is fantastic. Im getting Daffy ready for my retirement when I plan on sailing her about the watery places of the world….Anyone with any additional 42xl info would be greatly appreciated.
