Pitufino wifi gateway and NMEA tool kit
Products developed by active cruisers grab my attention. In my experience, products created onboard solve needs and fix issues directly experienced by the creator. Pitufino is no exception. There is no shortage of NMEA 2000 to WiFi gateways in the marketplace. There are also quite a few NMEA 0183 gateways. But few of them are nearly as ambitious, flexible, or offer as many features as the Pitufino gateway.
Pitufino
Pitufino, Spanish for baby smurf, is a small gateway with big ambitions. Pitufino was developed aboard the sailing vessel Pitufa, meaning Smurfette in Spanish, by Christian Feldbauer. So, Pitufa gave life to Pitufino. Pitufino’s tagline, “A real alternative to expensive chart plotters” speaks to the product’s ambitions. At 250 Euros or roughly $270, Pitufino is a very solid value for the money offering capabilities including WiFi Gateway, NMEA 0183 to NMEA 2000 conversion, and a full web interface including sailing, navigation, and engine instruments as well as autopilot control.
The Pitufino gateway is, at its core, a NMEA 2000 and NMEA 0183 WiFi gateway. That means it takes data available on a NMEA 2000 or NMEA 0183 networks and makes it available via TCP or UDP. Most commonly, NMEA data to WiFi gateways are used to connect navigation devices like GPS receivers, depth sensors, and AIS transceivers to navigation software running on tablets, phones, and computers.
However, unlike most WiFi gateways, the Pitufino has both NMEA 2000 and NMEA 0183 interfaces built in plus an optional SeaTalk 1 interface. Additionally, Pitufino allows granular control of data routing between it’s two NMEA 0183 interfaces, NMEA 2000, and optionally, SeaTalk 1. Perhaps more importantly, the gateway also features a number of web applications providing instrument panels and auto pilot controls. Lastly, sprinkled through the interface the user finds opportunities to correct, tweak, and modify the data Pitufino processes and outputs.
Using Pitufino to output data to a navigation app like Aqua Map or Navionics, it functions like just about any other gateway. During my testing, I succesfully received data in both Aqua Map and Navionics. However, I did have to enable the transmission of individual data types in the NMEA 2000 -> Add to Stream settings.
Physical installation

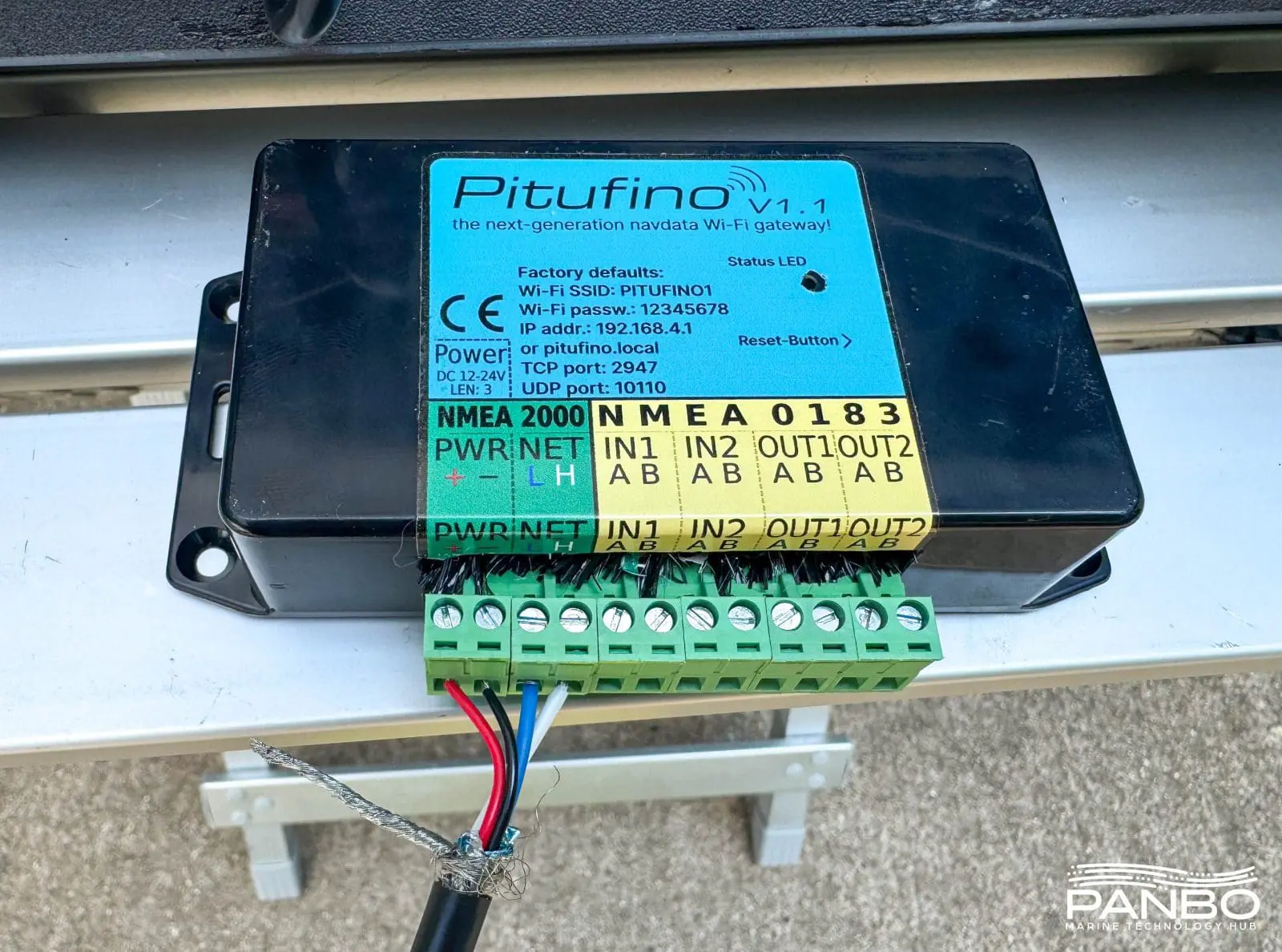

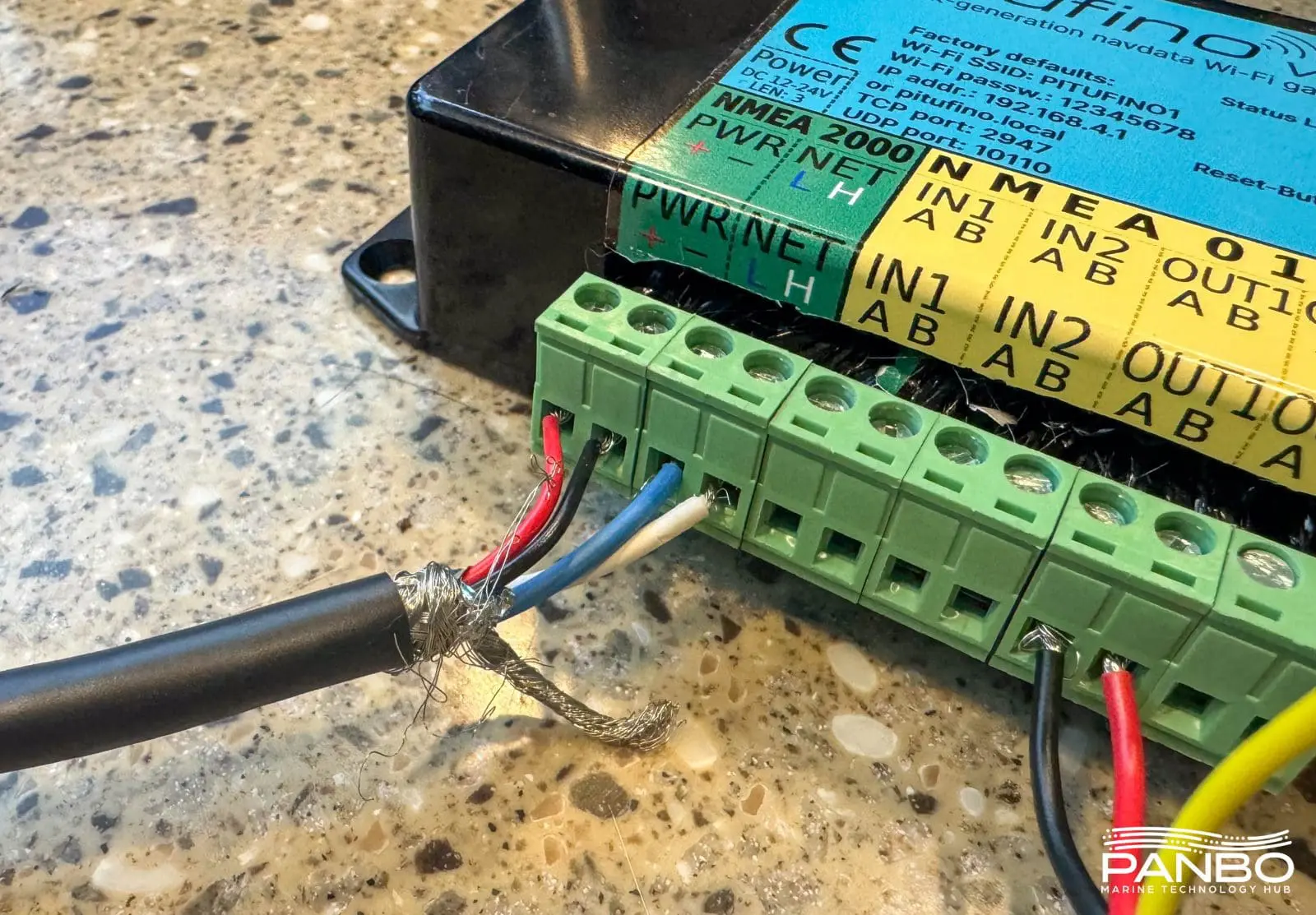

I’m a big fan of the many capabilities Pitufino brings to the table. I’m not a fan of the wiring scheme used for NMEA 2000 connectivity. Rather than providing a DeviceNet connector on the unit, there are four screw terminals on the left end of the device’s strip of connections. To connect it to a NMEA 2000 network, you must either buy a DeviceNet male to bare-wire cable (Pitufino sells them for 20 Euro) or cut a NMEA 2000 spur cable and strip the wires.
I suspect the majority of Pitufinos will be connected to NMEA 2000 and hence would benefit from the simplicity of a built-in DeviceNet connector. However, this connection scheme does offer one important advantage. If the device isn’t connected to NMEA 2000, power is easily supplied by simply connecting 12-volt positive and negative to the two extreme left terminals.
Additional installation steps depend on what other equipment is connected. Pitufino features two NMEA 0183 interfaces, each of which support separate port speed and filter settings. And, if equipped, a SeaTalk 1 interface to connect to Raymarine SeaTalk 1 instruments and autopilots.
Web instruments

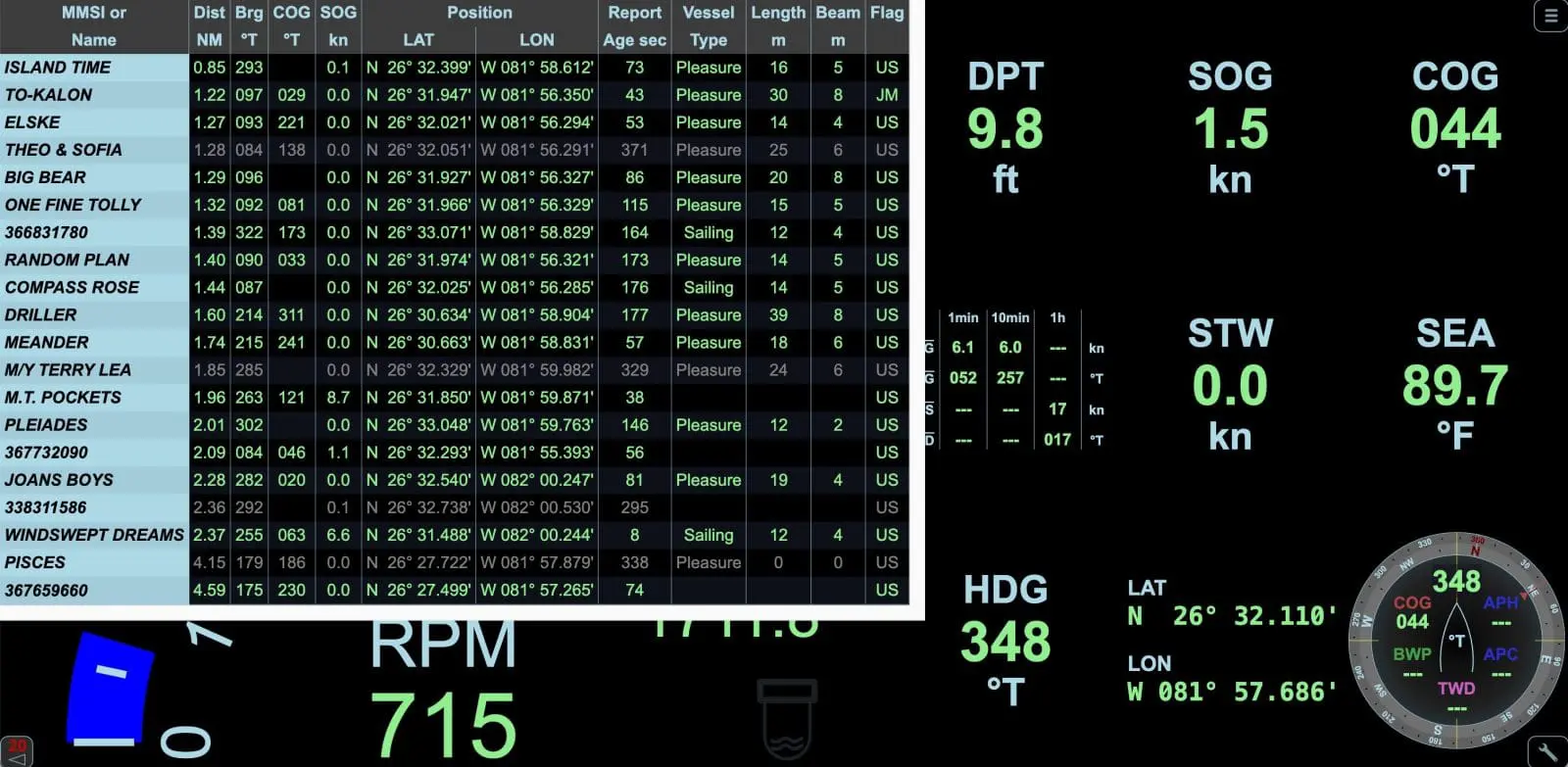

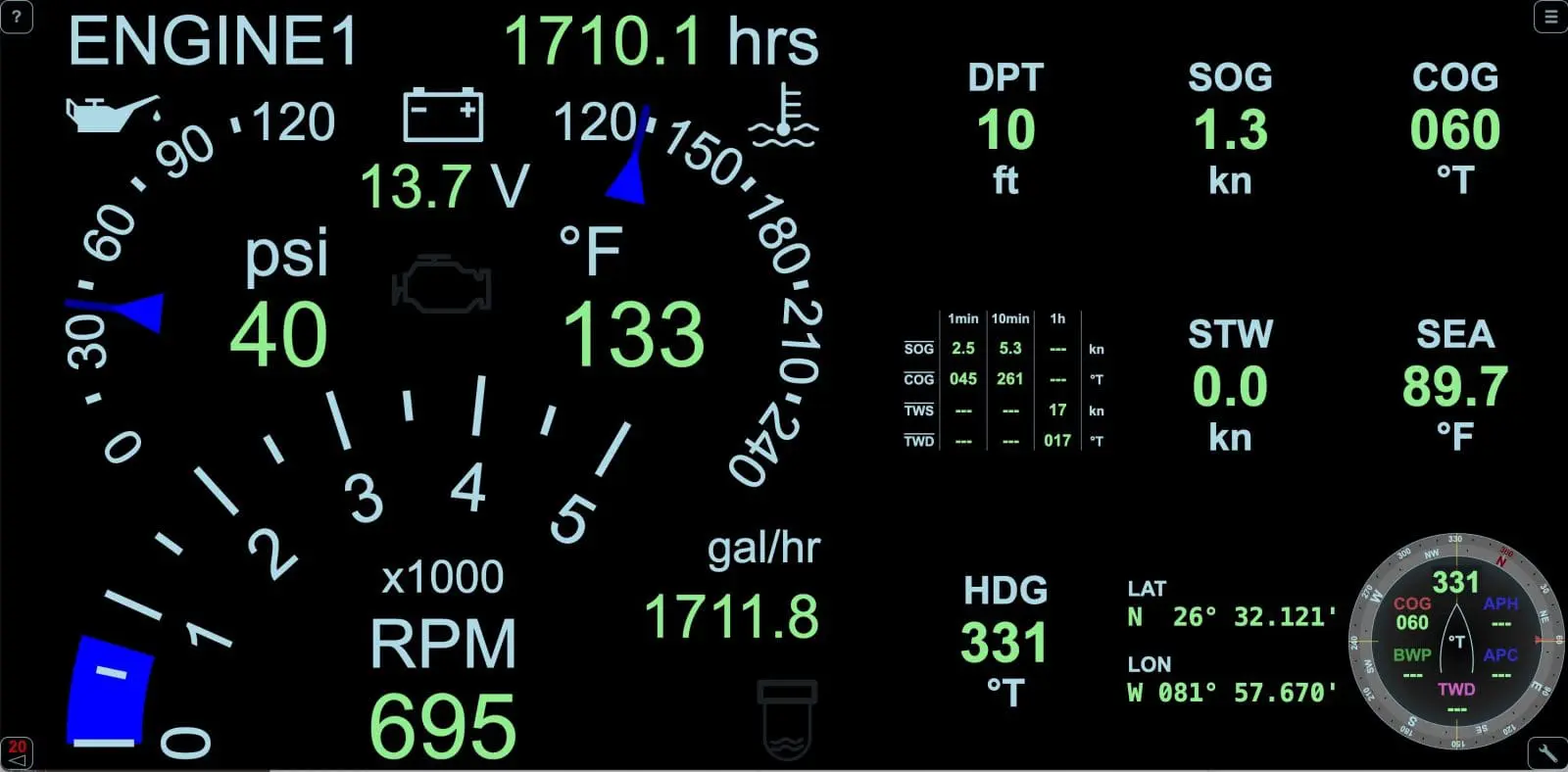

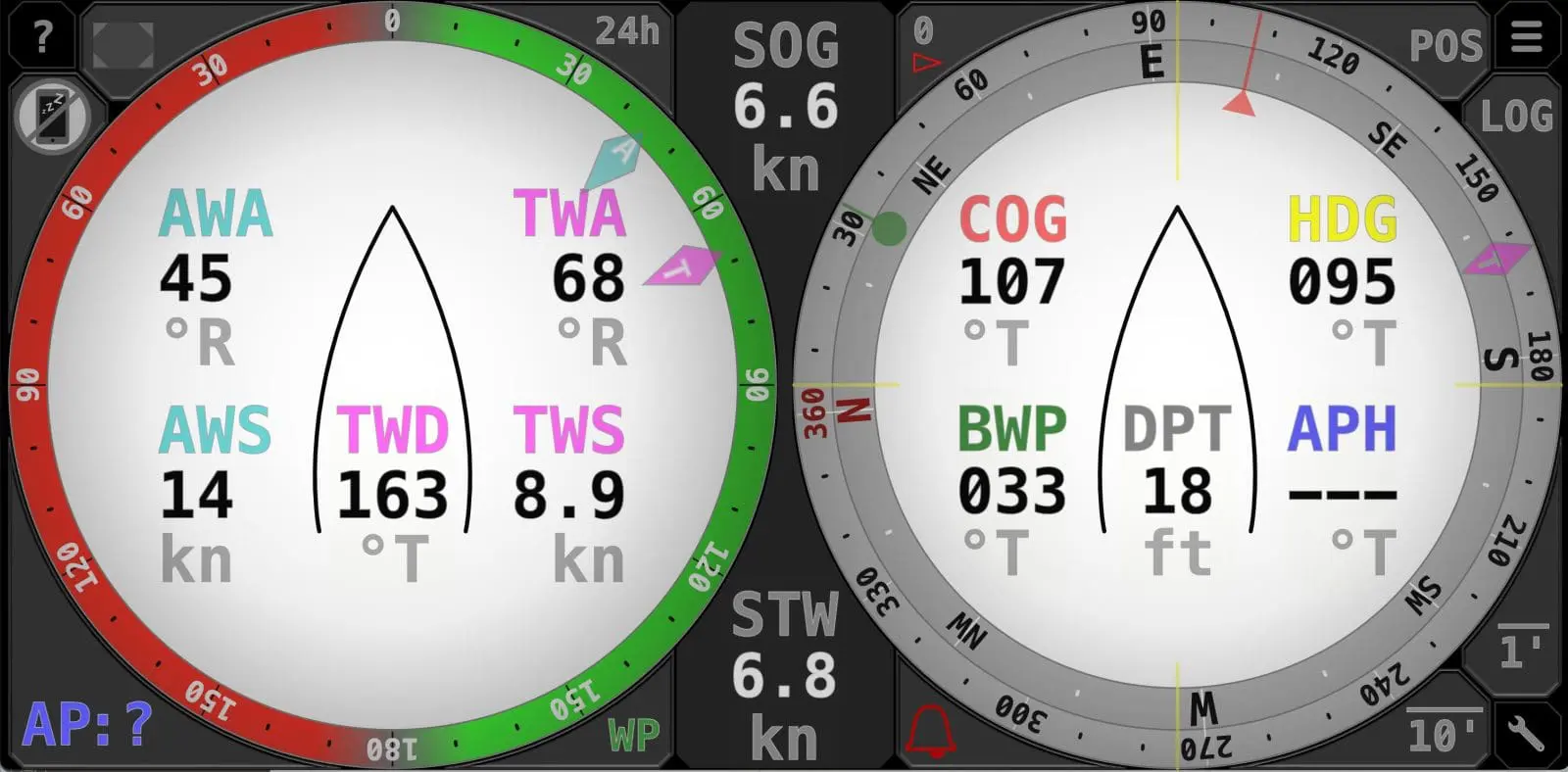

A built-in web server allows any phone, tablet, or computer to serve as an instrument display. The web server displays sailing instruments, an anchor alarm, and two configurable multi displays.
The instruments offered via the web server display data for quite a few different scenarios. Although I’ve used other NMEA 2000 to WiFi gateways with built-in web servers, I haven’t previously seen a gateway with as complete a feature set as Pitufino. Most gateways I’ve seen offer display of real time data but don’t offer features like the anchor alarm, logbook, and value averages.
Creative data calculations and corrections

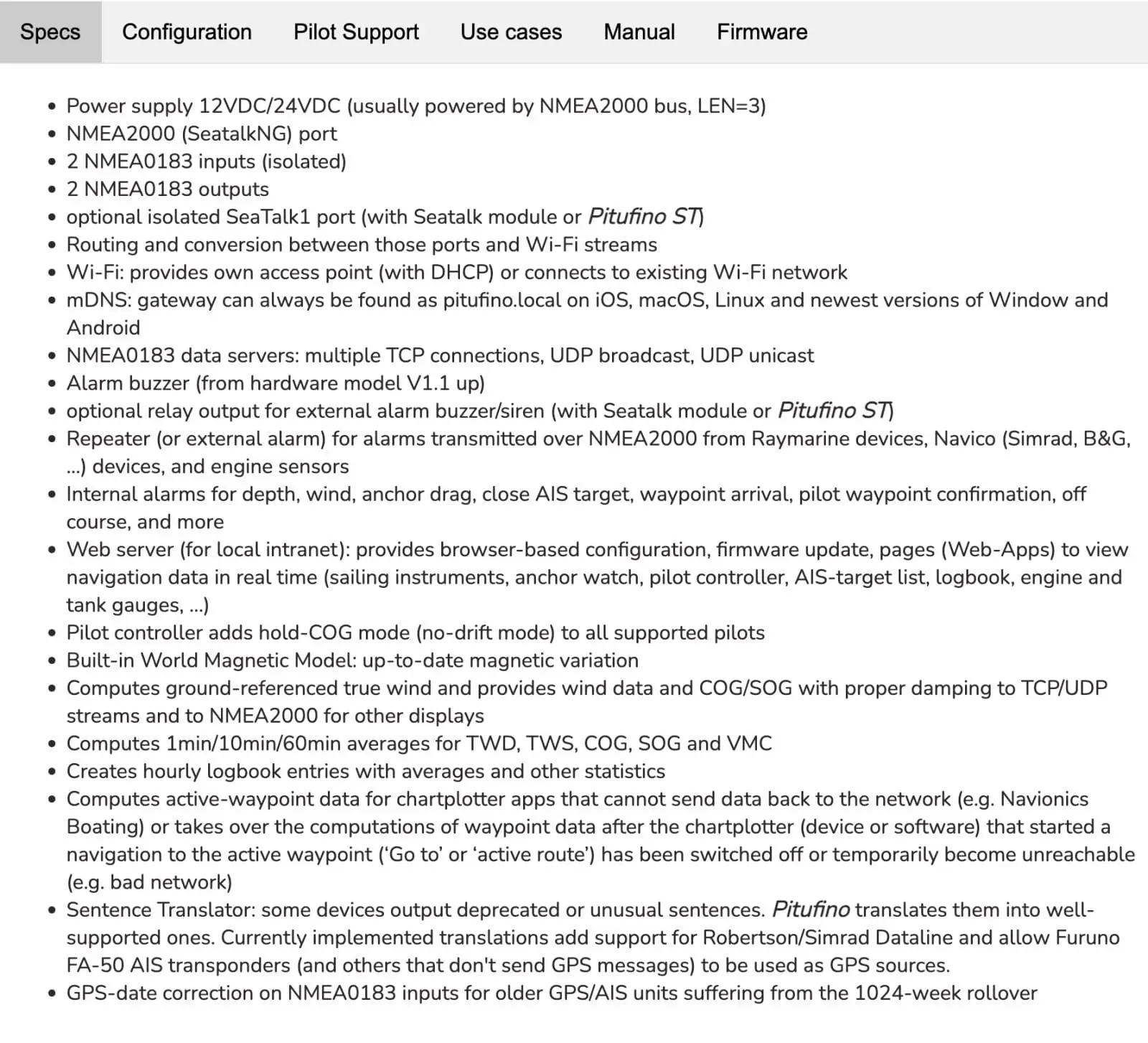

As you can see from the long list of features above, Pitufino has a lot to offer. Many of the top features read a lot like similar products from the Yacht Devices, Quark Electronics, and others. However, as you move down the list, you find a bunch of smart features using Pitiufino’s processing power to modify, correct, translate, and otherwise manipulate the data flowing through it.
Everywhere you look in Pitufino’s settings, there are clever touches to deal with real world problems. The five checkboxes in the “Input Sentence Translation” section all either correct issues or unlock additional capabilities. For example, using position information from an AIS VDO or own vessel sentence to output an RMC or vessel position sentence. The next three checkboxes allow conversion between deprecated sentences and their replacement to offer compatibility between new and old depth sounders and displays as well as wind instruments and displays. Finally, older GPS units that have rolled over their date can still be used by applying a user specified correction.
With another creative manipulation of the data, Pitufino adds the ability to manipulate a compatible autopilot’s heading hold mode to instead hold a course over ground (COG). When enabled, Pitufino adjusts the autopilot’s heading to maintain a steady COG. The feature corrects for current and wind that otherwise might push the boat off course, even if the autopilot maintains the requested heading.
Alarms
I’m not sure why, but NMEA 2000 alarms are hard and unevenly supported. To me, there is no reason support should be difficult and limited. Years ago Maretron showed the industry how it should be done. Despite that early example, alarming is still uneven and often poorly supported between brands.
Pitufino makes alarms quite simple. There’s a single consolidated view of all alarms and their status. The list is usually a single vertical list, but I sliced it in half for the screenshot above so it would fit a little better. Pitufino itself has a small speaker built-in. In my testing, I’ve heard it fine, but if the unit were mounted out of the elements and under a helm or inside, it would be hard to hear.
Fortunately, as part of the SeaTalk 1 module, a 35 Euro add-on, Pitufino also supports an alarm relay. That relay can be used to power a strobe, siren, or other alarm enunciator.
Final thoughts
Pitufino isn’t perfect. As I mentioned, I’m not a big fan of the bare wire connection for NMEA 2000 and I think some of the visuals in the web applications could be cleaned up a little. However, Pitufino brings several unique features to a network and provides a toolbox to address many situations and potential issues. So, for a 270 Euro device with as many capabilities as it has, I think it’s safe to say the device is a serious bargain.
