Simrad NSX, testing starts with Simrad’s new chartplotter and operating system

The NSX’s initial greeting

Simrad announced the NSX family of MFDs in time for the Miami boat show. At first glance, a new, entry level family of MFDs might not seem like a huge development. But, I’d encourage you to take another look because this announcement is a big deal. Simrad’s NSX is the first chartplotter from Navico to run their new operating system.

Incidentally, it caught my eye that Simrad’s press release announcing NSX described it as a chartplotter, not a multifunction device or MFD as seems to be more typical. I asked Simrad about the terminology and was told they believe that the term MFD isn’t well known or understood by the public and believe chartplotter is more clear.

A whole new operating system

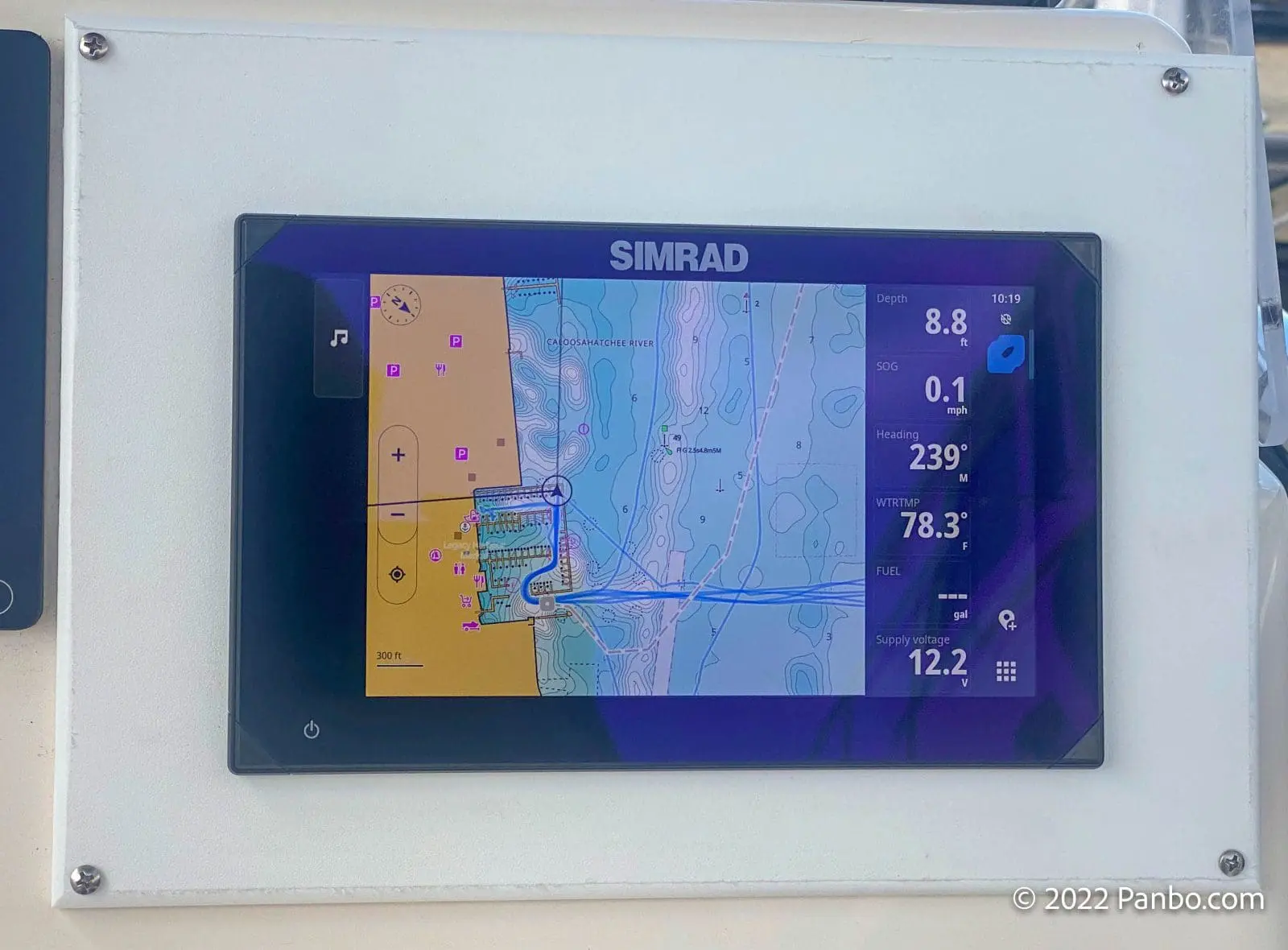

A Simrad NSX 9 installed on Panbo(at)

It’s been a relatively quiet couple of years for the Navico brands when it comes to major chartplotter announcements. I’ve had a feeling for some time they were working on a new operating system to replace the aging, Linux-based NavicoOS (NOS). It turns out that’s exactly the case. Neon, as the new, Android-based operating system is known, is the foundation of Navico chartplotters moving forward.

Navico’s migration to Neon is very similar to what Raymarine did when they migrated from their legacy software base to the Android-based LightHouse III. It’s a difficult transition for any marine electronics company to complete. It requires an immense amount of coding to bring over all the functionality from the previous code-base to the new one.

In technology operations, like the financial services technology world I come from, this is referred to as technical debt. As your existing products –and the software they run– age, it is necessary to rewrite the software on modern hardware, with current development environments, programming languages, and operating systems. Done right, the end-user barely notices the effort. This, despite the tens of thousands of developer hours that went into making it happen.

I think Simrad has made a clever decision to launch their new operating system starting with their value product. The NSX is essentially a replacement for the Go series. By starting with the Go, they ensure early installations will be simple. Currently, Go series MFDs have limited networking capabilities, so the expectations for the NSXs that replace them are lower. When Raymarine went through their similar transition, it was a painful period during which many advanced functions didn’t yet work.

Early impressions

At first glance, my initial sense of NSX and Neon is that this is a visually pleasing, intuitive user-interface. I’m running on early software but yet the unit has been quick, responsive, and generally feels quite polished.

Using NSX, the visual appeal of the interface stands out. Simple screens like the boat dimensions above effectively illustrate the data needed in an attractive manner.

NSX 9 Nav Chart

Simrad is proud of the fact they’ve rewritten nearly every portion of Neon. They’re quick to point out they haven’t just ported the code from NavicoOS, but instead revisited how it works and optimized it. Accordingly, the chart viewer on Neon is all new.

At launch, NSX chartplotters are only compatible with C-Map X-Series charts. X-Series charts come in two varieties: Discover X and Reveal X. Reveal X adds satellite overlays and a shaded, 3-D relief layer with higher resolution bathymetric imagery. Of note, previous versions of C-Map chart cards you may already have won’t work with Neon.

NSX 9’s chart viewer showing a route being planned on the right side

Several activities will cause the plotter to display a side-bar with additional content. For example, Route planning brings up the route sidebar seen at the right of the screen above. This pane gives you useful information about each leg of the route. Plus, if you click on an individual leg, you can bring up more options including the ability to autoroute a leg.

Testing continues

NSX 9 displaying NMEA 2000 debug data

There’s lots more to test and I’m well underway on that testing. There are several areas in which NavicoOS MFDs distinguish themselves and I’m anxious to see how Neon does in those areas. For example, I believe NMEA 2000 diagnostic and debugging information is a clear strength of NavicoOS. Thus far, it looks like Neon also does an excellent job in this department. But, there are other areas I haven’t had the opportunity to explore, but I’m planning to do in the near future.

Ben Stein

Ben Stein

Publisher of, passionate marine electronics enthusiast, 100-ton USCG master.

11 Responses

  1. This is actually the second outing of NEON: the (much simpler in terms of number of different GUI elements) B&G Nemesis display also uses the new OS.

  2. Craig Owings says:

    Sounds like a great new OS. The only thing lacking at this point is the ability to use Navionics charts. C-Map is ok, but not the detail of the Navionics. Lack of Navionics support, would make me think about upgrading from my Simrad NSS EVO3.

    • Ben Stein Ben Stein says:

      Unfortunately, I don’t think Navionics support is very likely. The realities of charting products owned by competitors is forcing some of these decisions. I will say that the X-series charts on NSX are much better than my recent C-Map experiences.

      -Ben S.

  3. Jesse Henry says:

    listening in closely and carefully to this as it progresses… this might be a perfect “Chart Plotter” for the helm of the boat I’m working on putting together…

  4. Any idea if the NSX pairs with Motorguide trolling motors like other Simrad products?

  5. So for now no motorguide support, and no declaration on if it is coming.

  6. Dan Corcoran Dan Corcoran says:

    Can we expect to see Neon released on previous versions of hardware?

    • Jørgen says:

      …do McDonald’s sell . Dream on

    • Ben Stein Ben Stein says:

      Sorry for the late reply on this. I have asked Navico product managers exactly this question and it appears the answer is no. I think they saw the trouble Raymarine had trying to back port LightHouse 3 and took that as an object lesson about why not to try. Invariably, there are large hardware differences between the older hardware and the launch hardware for a new platform. Supporting all the various systems brings complexity at a time that they’re already dealing with gobs of it.

      Although it might be disappointing to existing product owners, I think it’s probably good product management not to bite off a ton and deliver a mediocre user experience.

      -Ben S.

  7. surf salterpath says:

    …. time to update your nsx review? The season is here!!!!
