VIKING’s remarkable 800+ person LifeCraft system, Torqeedo powered

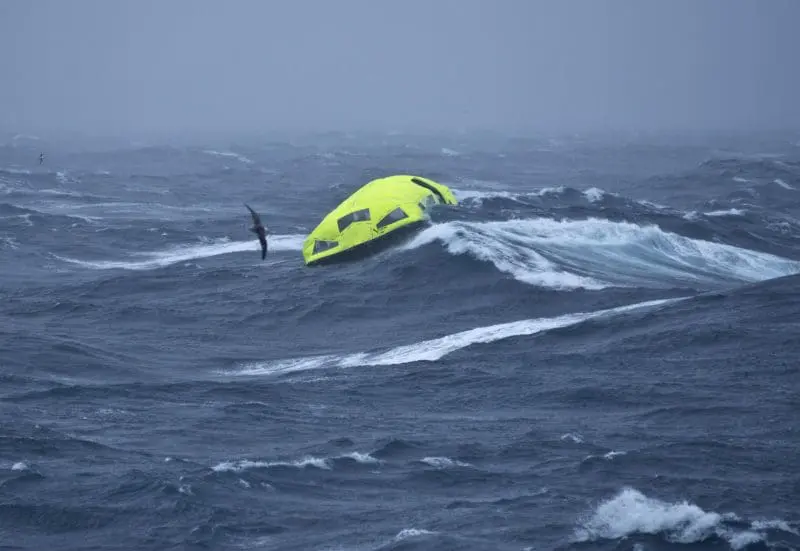

Viking Life-Saving Equipment has designed an almost frightening number of innovations into its LifeCraft system, so it’s good to see that it apparently tested fine in North Sea waves ranging from 12 to 15 feet with 33-foot peaks (gCaptain has more testing details here). The system may soon make big cruise ships safer, and perhaps some of the technology will work its way down to recreational vessels.

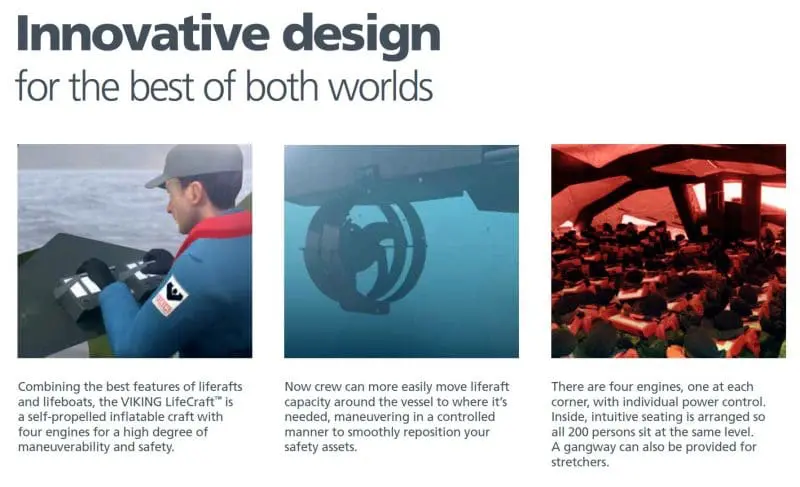

The big LifeCraft idea is to combine the compactness and seaworthiness of a liferaft with the self-propelled maneuverability of a lifeboat, and a key enabling technology is Torqeedo electric pod drives with 48v lithium-ion battery packs. In fact, each 200-person LifeCraft has four independent pods for maximum control, and four LifeCrafts can deploy from a single box that occupies fairly little deck space.

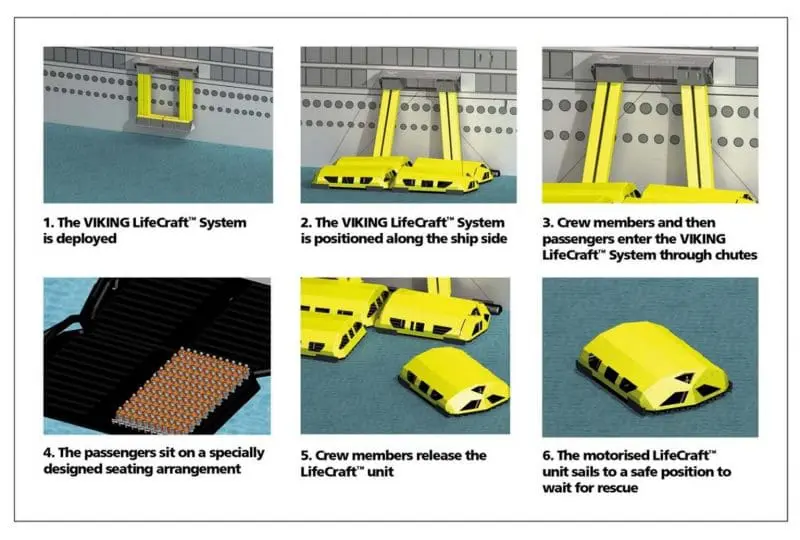

VIKING LifeCraft general concept

VIKING LifeCraft deployment concept

According to Viking’s animated demo video, a single button push initiates the otherwise automatic deployment of a LifeCraft fleet including vertical chutes that a total of 800 passengers and crew can use to evacuate the ship.

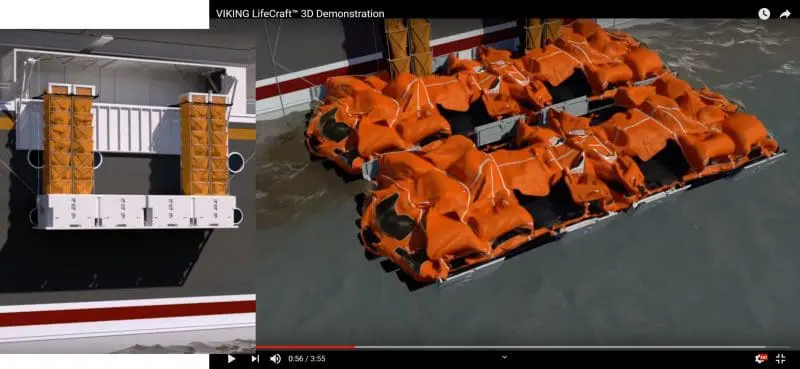

VIKING quad LifeCraft automatic deployment details

VIKING quad LifeCraft automatic deployment details

In these screens shots from the video, note that the gray “casings” that appear to secure the big rafts before inflation are also the Torqeedo propulsion pods. It’s hard to see how conventional engines could work in a similar design, let alone be serviced on an appropriate schedule. Then again, that’s a whole lot of automatic inflation and expansion that has to happen before a crew person can easily get aboard the LifeCrafts.

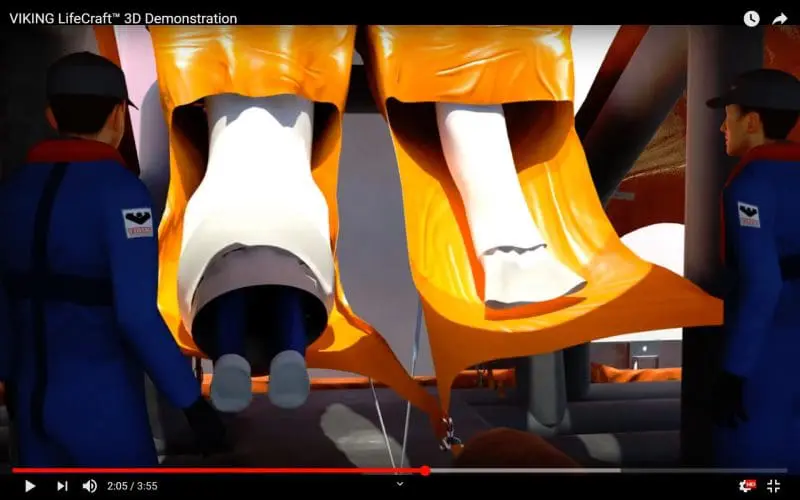

VIKING evacuation chute simulation

VIKING evacuation chute simulation

And, by the way, did you wonder how you’d drop down a chute two or more decks tall without stubbing a toe or worse? The trick seems to be a sort of giant elasticized compression tube that slows your descent to a reasonable speed. The animation does indicate that Crock-like shoes are put on first, but I don’t know why. Anyone?

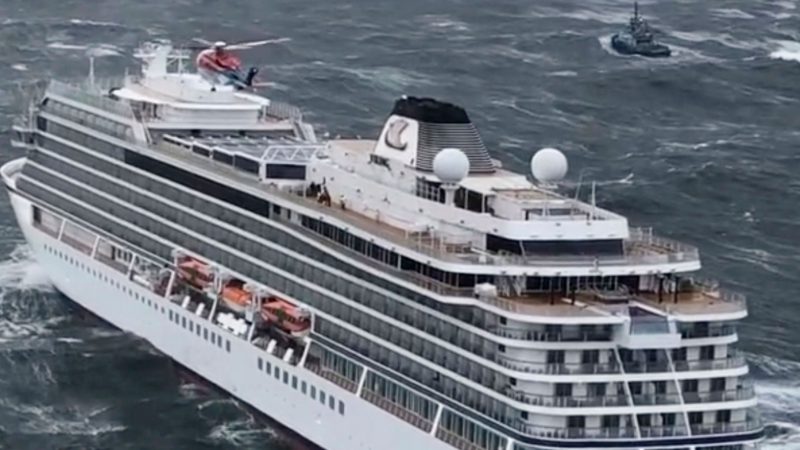

Helicopter evacuation off Viking Star March 2019 courtesy AP

Coincidentally, helicopters recently evacuated nearly 500 Viking Sky passengers in very hairy conditions off Norway. The two Vikings are different companies, and the ship’s lifeboats were not deployed, but the incident surely illustrates how even a professionally operated cruise can go chaotically wrong.

At any rate, Torqeedo — which also got to brag about their fishing kayak motors recently — is certainly bringing electric propulsion to all sorts of marine markets these days, and I look forward to what they come up with next.

Ben Ellison

Ben Ellison

Panbo editor, publisher & chief bottlewasher from 4/2005 until 8/2018, and now pleased to have Ben Stein as a very able publisher, webmaster, and editing colleague. Please don't regard him as an "expert"; he's getting quite old and thinks that "fadiddling fumble-putz" is a more accurate description.

2 Responses

  1. Ben Ellison Ben Ellison says:

    Torqeedo is also providing electric propulsion for what is called a “freefall lifeboat” and when they say it’s designed to withstand serious G force, they are not kidding:

  2. Ben Ellison Ben Ellison says:

    I’m not surprised that system LifeCraft system won an “Engineering Team of the Year” award at the Electric & Hybrid Marine World Expo today. Congratulations to Viking Life-Saving Equipment and Torqeedo.
